Series 5 Granulator

Make Enquiry

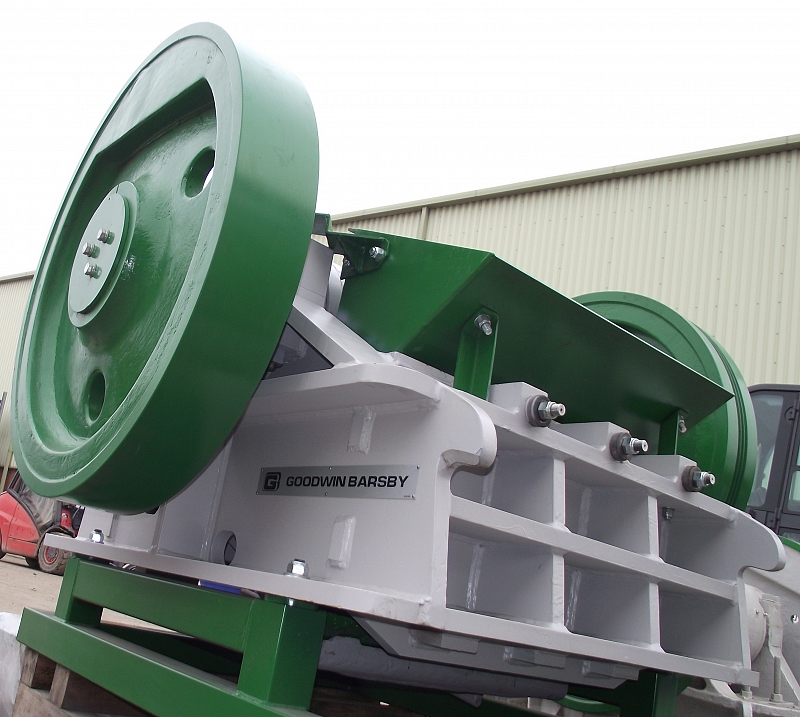

The Goodwin Barsby® Series 5 Granulator jaw crusher incorporates engineering enhancements without comprimising the tried and tested design.

Manufactured in the United Kingdom of Great Britain

The UK manufactured heavy duty thermally stress relieved mainframe, cast steel jawstock, forged eccentric shaft and oversize SKF spherical roller bearings are designed to withstand the most demanding applications.

Offering all round performance with high outputs, good product shape and economical running costs, the Goodwin Barsby® Granulator is a proven success in aggregate production and material reduction worldwide.

Up to 45 tonnes per hour

The 36"x6" | 915x150mm Granulator is capable of upto 45 tonnes per hour and has a minimum closed side setting of 13mm.

Jaw Chamber Size Weight Min CCS Capacity Power
36"x6"  |  915x150mm 5842 Kgs ½" | 13mm 13-45 TPH 27-30 kW
