Series 5 Jaw Crushers

Make Enquiry

The current range of Goodwin Barsby® Series 5 heavy duty single toggle jaw crushers have been developed by improving on the tried and tested design proven over many years without compromising build quality for cost savings.

Manufactured in the United Kingdom of Great Britain

The UK manufactured heavy duty thermally stressed relieved mainframe, cast steel jawstock, forged eccentric shaft and oversize spherical roller bearings are designed to withstand the most demanding of applications.

Typically a Goodwin Barsby® Series 5 heavy duty single toggle jaw crusher is of heavier construction than the average mass produced single toggle crusher available in today's market and the discerning Goodwin Barsby® owner will appreciate its rugged and reliable design that provides unrivalled life cost savings against machines of lighter construction.

Up to 360 tonnes per hour

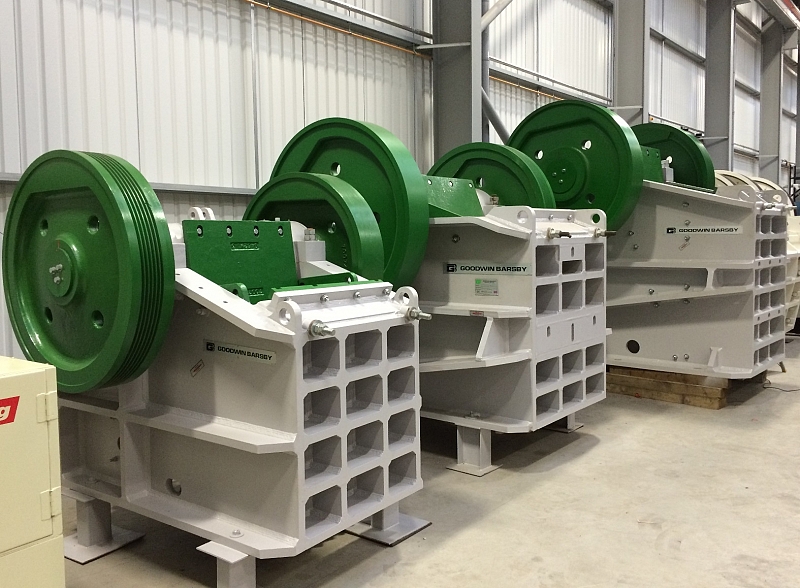

The Goodwin Barsby® Series 5 is available in four models upto 360 tonnes per hour.

Jaw Chamber Size Weight Capacity Min CCS Power

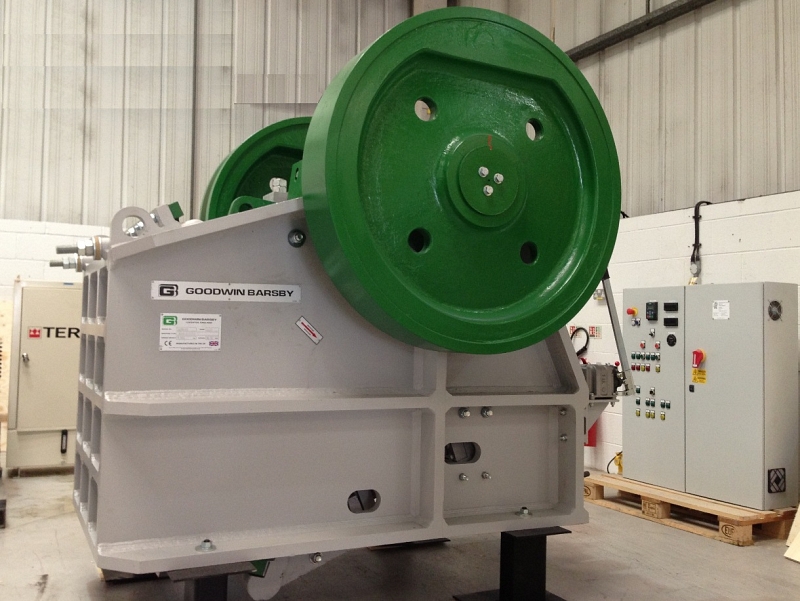

30"x18"  |  760x455mm 9,296 Kgs 40-140 TPH 2" | 50mm 45-55 kW

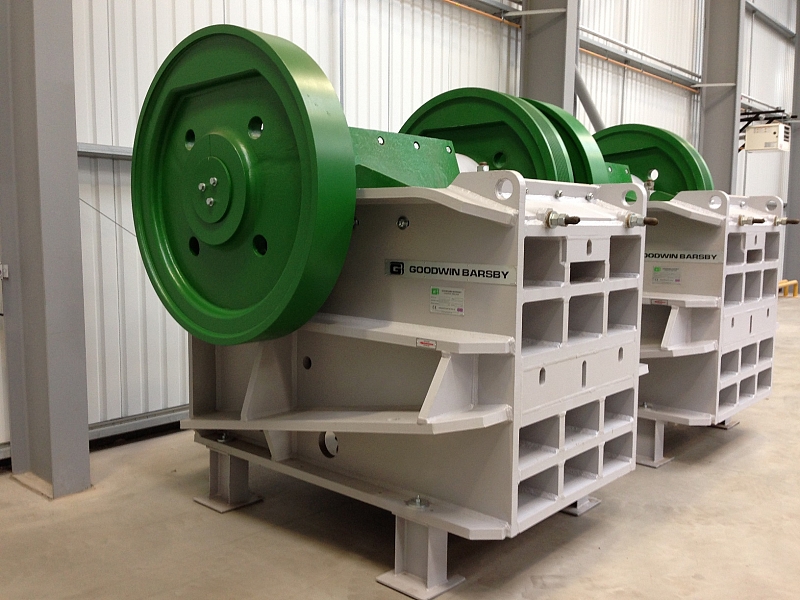

42"x24"  |  1065x610mm 20,830 Kgs 70-220 TPH 2½" | 60mm 70-90 kW

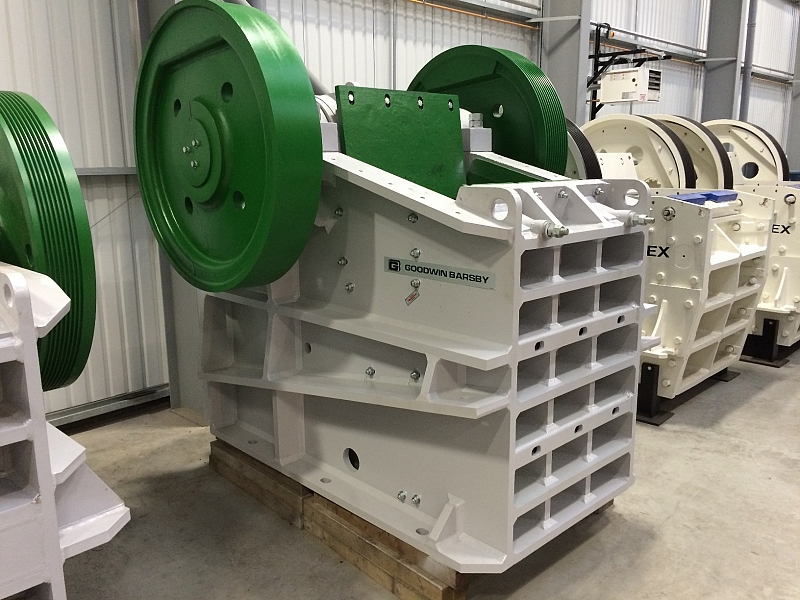

42"x30"  |  1065x760mm 27,992 Kgs 120-360 TPH 3½" | 90mm 110-132 kW

# All figures provided are indicitive only
